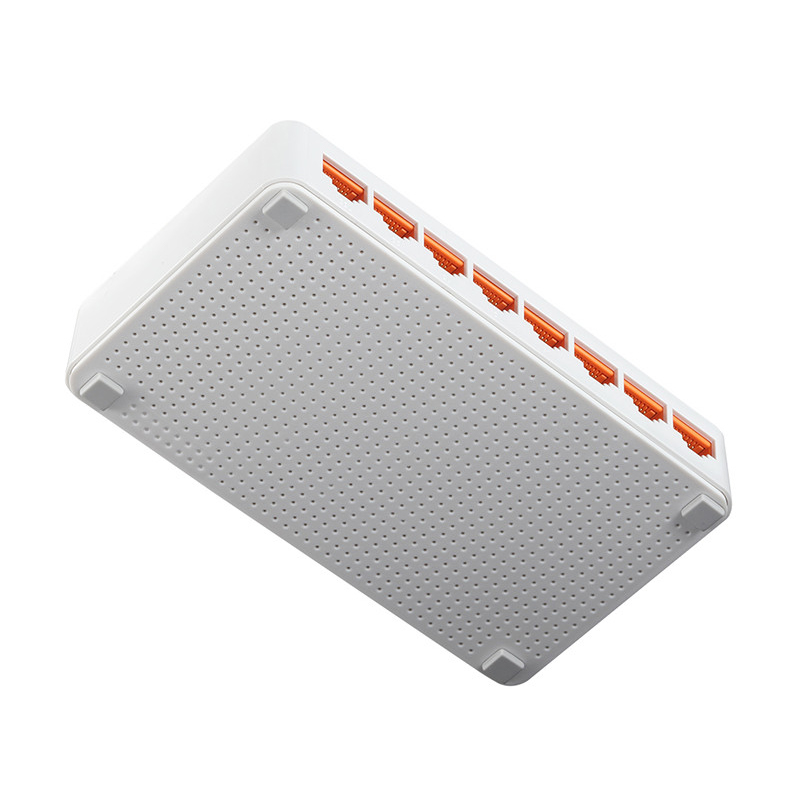

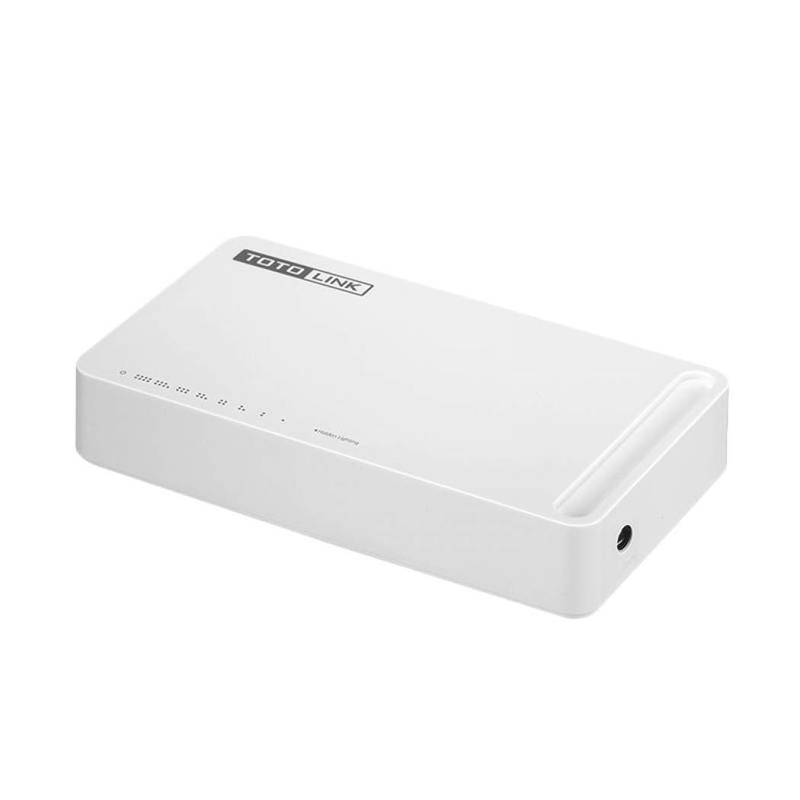

S808G
8-Port Gigabit Desktop Switch
- 8 10/100/1000Mbps auto-negotiated RJ45 ports
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- 4K entry MAC address table and automatic address learning
- Auto-MDI/MDIX eliminates the need for crossover cables
- Store- and-Forward Switching scheme
- Performs non-blocking full wired speed
- Supports Jumbo Frame (9KByte)
- Supports IGMP Snooping
- Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network
Spec
| Brand | TOTOLINK |
| Model | S808G |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Interface | 8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| Power Supply | 9V DC/0.5A |
| Dimensions(L x W x H) | 5.2 x 3.0 x 1.0 in. (132 x 75 x 25mm) |
| LED | 1* Power, 8*LANs |
| MAC Address Learning | Auto-learning, auto-aging |
| MAC Address Table | 4K |
| Network Media | - 10Base-T: UTP Cat 3, 4, 5 cable - 100BASE-TX/1000BASE-T: UTP Cat 5, 5e or above cable |
| Backup Bandwidth | 16Gbps |
| Transmission Method | Store-and-forward |
| Package Contents | - 1 *S808G Desktop Switch - 1 *Power Adapter - 1 *Quick Installation Guide |
| Environment | - Operating Temperature: 0℃~40℃ (32℉~104℉) - Storage Temperature: -40~70℃ (-40℉~158℉) - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing |
